|Products - AC CAPACITORS FOR LIGHTING AND MOTORS - Lighting Capacitors CBB80 Series
Product Model: LC25-ASIR
||Lighting capacitor CBB80-2
Rated Capacitance:4uF to 50uF
Capacitance tolerance:+/-10% or +/-5% (upon request.)
Rated Min.&Max. temperatures: -40~+85 degrees
Dissipation Factor:less than 0.002 at 50Hz,20 degrees
Test Voltage between terminals:2Un,2sec
Test Voltage between terminals and case: 2KV,2sec
Reference Standard: EN61048,EN61049

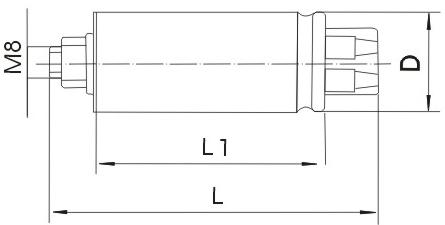

Case type: Metal casing(Aluminium)
Terminals:Push in terminal
Fixing: M8 metal stud
Advantages:Very small dissipation factor, small volume, light weight, small inherent temperature rise, excellent self-healing stability, safety and high reliability.It is safe because the capacitor is installed with discharge resistor and temperature fuze.
Applications:Power factor correction of transformers and magnetic ballasts in discharge lamps like fluorescent lamps, high pressure sodium vapor lamps,high pressure mercury vapor lamps,and metal halide lamps,etc.
